| name | Raspberry Pi |

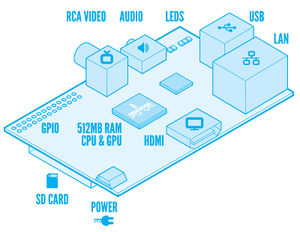

| image | Fichier:Raspberry Pi Beta Board.jpg |
| caption | Model B |
| developer | Raspberry Pi Foundation |
| releasedate | Early 2012 |
| XBMC | v12 |
| cpu | ARM1176JZF-S 700 MHz |
| storage | SD card slot |
| memory | 256/512 MB (see below) |
| connectivity | USB 2, composite video, HDMI, SD card slot, 3.5 mm audio, 10/100 ethernet[1], GPIO |
| os | OpenELEC, Raspbmc, XBian, Raspbian, Debian GNU/Linux, Fedora, Arch Linux |
| website | http://raspberrypi.org |
The Raspberry Pi is a single-board computer developed in the UK by the Raspberry Pi Foundation.
The design is based around a Broadcom BCM2835 SoC, which includes an ARM1176JZF-S 700 MHz processor, VideoCore IV GPU, and 256 or 512 MB of RAM. The design does not include internal storage, instead relying on an SD card for booting and long-term storage.
XBMC for Raspberry Pi
Team-XBMC developers ported XBMC to the Raspberry Pi using beta boards supplied by the RPi Foundation.
- Raspberrypi.org- XBMC running on Raspberry Pi
- YouTube video of XBMC running on Raspberry Pi
- XBMC Raspberry Pi support forum
Installing XBMC
The easiest way to install XBMC on an R-Pi is to use one of these pre-made OS/XBMC packages:
- OpenELEC - [ Installing ] - [ FAQ ] - [ Help forum ]
- Raspbmc - [ Installing: Windows, Mac OS X, Linux ] - [ FAQ ] - [ User guide ] - [ Help forum ]
- XBian - [ Installing ] - [ FAQ ] - [ Starters guide ] - [ Forum ]
- For Mac users, an unofficial installer for Raspbmc and XBian is also available here
You can also install XBMC on Raspbian:
- Raspbian - http://www.raspbian.org/RaspbianXBMC
Specifications
| Model A | Model B | Model B (After Oct 2012) | |
|---|---|---|---|
| Target price: | USD $25 (GBP £16) | USD $35 (GBP £22) | |
| SoC: | Broadcom BCM2835 (CPU + GPU + DSP + SDRAM) | ||
| CPU: | 700 MHz ARM1176JZF-S core (ARM11 family) | ||
| GPU: | Broadcom VideoCore IV, OpenGL ES 2.0, 1080p30 h.264/MPEG-4 AVC high-profile decoder | ||
| Memory (SDRAM): | 256 MB (shared with GPU) | 512 MB (shared with GPU) | |
| USB 2.0 ports: | 1 | 2 (via integrated USB hub) | |
| Video outputs: | Composite RCA (PAL & NTSC), HDMI (rev 1.3 & 1.4), raw LCD Panels via DSI, 14 HDMI resolutions from 640×350 to 1920×1200 plus various PAL and NTSC standards. | ||
| Audio outputs: | 3.5 mm jack, HDMI | ||
| Onboard storage: | SD / MMC / SDIO card slot | ||
| Onboard network: | None[1] | 10/100 Ethernet | |
| Low-level peripherals: | 8 x GPIO, UART, I²C bus, SPI bus with two chip selects, +3.3 V, +5 V, Ground | ||
| Power ratings: | 500 mA (2.5 W) | 700 mA (3.5 W) | ??? |
| Power source: | 5 volt via MicroUSB or GPIO header | ||
| Size: | 85.60 × 53.98 mm (3.370 × 2.125 in) | ||
| Supported operating systems: | OpenELEC, Raspbmc, XBian, Raspbian, Debian GNU/Linux, Fedora, Arch Linux, RISC OS | ||
